Ultra Light Weight Modules
Leverage on our distribution agreement for ultralight flexible modules with comprehensive European certifications. The only solution to solarize low structural load rooftops in Europe.
Unlock new Markets and Applications
AN UNIQUE OPPORTUNITY FOR UNEXPLORED APPLICATIONS!
Our partnership demonstrate our increasing efforts to provide the latest cutting edge solution where traditional and standard modules have proven to be unfit.
Through Axium Group partnership with CreaWatt, our clients benefit from direct distribution at unmatched rates, providing an edge compared to other products and the assurance of a fully certified and insured product.
![Panel with data [EN] (1).png](https://static.wixstatic.com/media/4ccb86_b7c97d136c43411bb15c7b718a8ac30a~mv2.png/v1/fill/w_554,h_554,al_c,q_85,usm_0.66_1.00_0.01,enc_avif,quality_auto/4ccb86_b7c97d136c43411bb15c7b718a8ac30a~mv2.png)
THE LUXSIOL KIT
THE NEW ultralight flexible photovoltaic modules from Luxsiol are provided as a set of panel and mounting system. The system is an easy-to-install composed of a grip (hook and loop), AdLux glue and custom nozzles. In addition to the ready-built system clients can purchase additional products designed by CreaWatt, such as the cable tray and glue trolley which improves significantly the execution and safety of the installation.
ULTRA LIGHT FLEXIBLE MODULE
MOUNTING SYSTEM
CABLE TRAY
GLUE CART
APPLICABLE SURFACES
Unlike traditional framed panels, Luxsiol panels can be installed in almost any roofing, the light weight of the panel (3.25 Kg/m²) opens up new possibilities for installations where standard framed panel may not be fit dues to several reasons such as weak or old structures, curved surfaces, new-built roofs made of lighter materials among other.
STRENGHT TESTS
Our solar panels are subjected to a series of rigorous strength tests to ensure they can withstand harsh environmental conditions. These tests assess the panels' resilience against extreme weather, including high winds, heavy impacts, and severe temperature variations.
FIRE TEST BY CSTB
Certified B Roof T3 under the European Standard EN 13501-5
HAIL TEST IN LAB
Result: 1 damaged cell and panel remained operational.
Extreme Hail Test using hailstones weighing 112g and 78mm in diameter were launched at
172 km/h at the panel. The European standard IEC 61215 (MKT 17) requires resistance to the fall of a 25 mm diameter hailstone at a speed of 23 m/s [83 km/h].
By exceeding industry standards, our panels offer superior durability, ensuring long-lasting performance and reliability even in the most challenging environments.

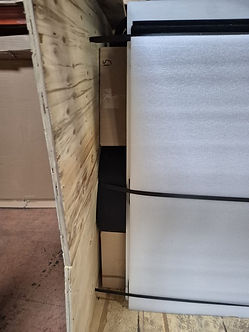

PRODUCT PACKAGING
DIMENSION
Pallet 520Wc
Dimension 2180*1120*1170
PROTECTION
Wood protection on 3 sides
Pallets recovered by CW
PRODUCT FITTING
60 modules per pallet
(25.8kWp) 520 Kg
ACCESORIES
Grip system
Glue and Velcro delivered in pallet
THE LUXSIOL GUARANTEE
Luxsiol is committed to providing exceptional quality and peace of mind through a comprehensive product guarantee.
-
Ten-year insurance for installers who have completed the training and obtained certifications (1.5% of the installation revenue for Luxsiol from the installer) (France)
-
20 year product warranty
-
25 years linear power output warranty
-
Possibility to insure loss of earnings on an industrial building in case of damage (France)
-
Possibility to insure machine breakage (France)
-
Installer civil responsibility during the execution of the work (France)
FLEXIBLE MODULES MARKET COMPARISON
DISTRIBUTION ACROSS THE ENTIRE EUROPEAN CONTINENT
With strategically located logistics platforms in Rotterdam and Marseille, we offer rapid delivery options across Europe. In addition, through our trusted partners, we provide comprehensive logistics services from China and other overseas locations, ensuring efficient and timely deliveries to any destination. Our global network allows us to support our clients with flexible and reliable supply chain solutions tailored to their needs.
